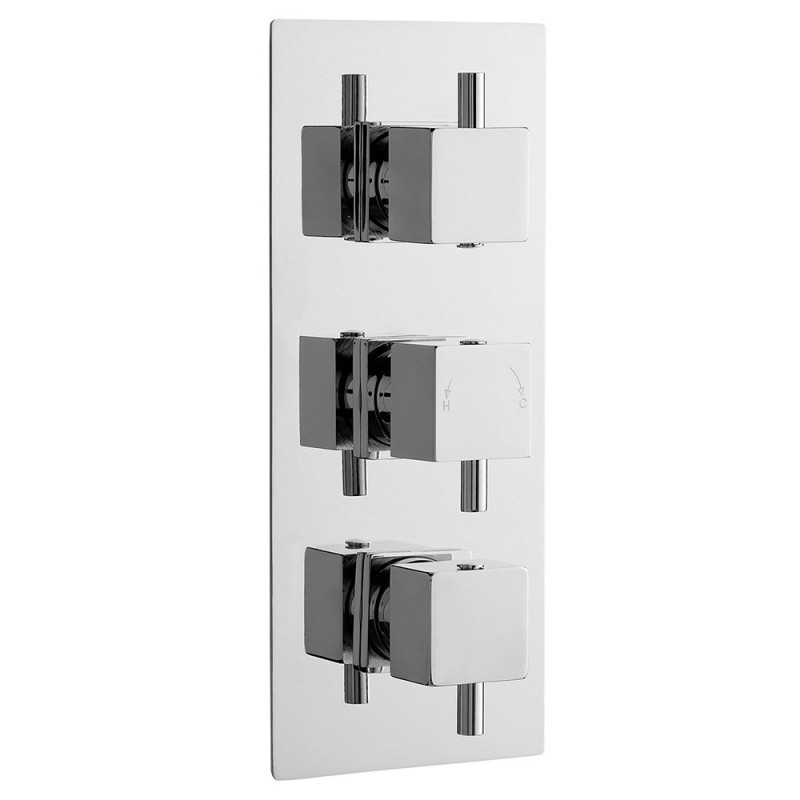

Series L Concealed Shower Valve Triple Handle

Quickfind Code: 18397 SKU: JTY303
Series L Concealed Shower Valve Triple Handle - Main Series L Concealed Shower Valve Triple Handle - Main
  • Series L Concealed Shower Valve Triple Handle - Main
  • Series L Concealed Shower Valve Triple Handle - Insitu
  • Series L Concealed Shower Valve Triple Handle - Technical Drawing
£292.00
Tax included
In Stock
If you order before 2pm your order will be delivered FREE between Wednesday, 3rd April - Friday, 5th April
info Product Information
  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 degree - even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down within 1.5 seconds
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • Our valves can deliver 5.5 litres per minute at 0.1 bar pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180ø and replace
  • Manufactured from high quality brass & ABS
Returns policy for nuie Branded Products
nuie Brand
JTY303 Reference
In Stock Stock Level
Width 120mm
Height 280mm
Depth 136mm
Finish Chrome
Guarantee 5 year
Style Contemporary
Type Concealed Shower Valves
Range Volt
Made In UK Yes
WRAS Approved Yes
WRAS Approval Number 1703023
TMV2 Approved Yes
TMV2 Approval Number BC1875/0817
TMV3 Approved Yes
TMV3 Approval Number BC1119/1212
Operating Pressure 0.1
Valve/Cartridge Type 1/4 Turn Ceramic Disc
Flow Rate - 0.1 Bar 5.5
Flow Rate - 0.5 Bar 14
Flow Rate - 1 Bar 20
Flow Rate - 2 Bar 29 l/min
Flow Rate - 3 Bar 44 l/min
