Reign Twin Concealed Thermostatic Valve Oval Plate

Quickfind Code: 97562 SKU: REI3410
Reign Twin Concealed Thermostatic Valve Oval Plate Reign Twin Concealed Thermostatic Valve Oval Plate

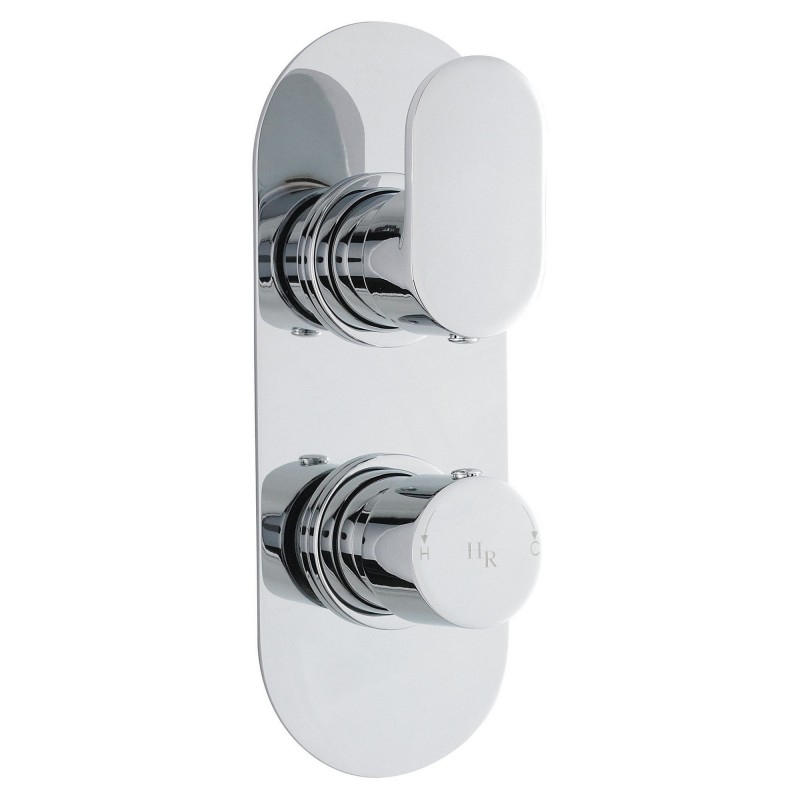

  • Reign Twin Concealed Thermostatic Valve Oval Plate
  • Reign Twin Concealed Thermostatic Valve Oval Plate - Insitu
  • Reign Twin Concealed Thermostatic Valve Oval Plate - Technical Drawing
£264.00
Tax included
In Stock
If you order before 2pm your order will be delivered FREE between Monday, 24th June - Wednesday, 26th June
info Product Information
  • Minimalist sleek design
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS
Returns policy for Hudson Reed Branded Products
Hudson Reed Brand
REI3410 Reference
In Stock Stock Level
Finish Chrome
Width 80mm
Height 215mm
Guarantee 20 Year
Depth 136mm
Style Contemporary
Type Concealed Shower Valves
Range Reign
Made In UK Yes
WRAS Approved Yes
WRAS Approval Number 1703023
TMV2 Approved Yes
TMV2 Approval Number BC1875/0817
TMV3 Approved Yes
TMV3 Approval Number BC1119/1212
Operating Pressure 0.1
Valve/Cartridge Type 1/4 Turn Ceramic Disc
Flow Rate - 0.1 Bar 5.5
Flow Rate - 0.5 Bar 14
Flow Rate - 1 Bar 20
Flow Rate - 2 Bar 29 l/min
Flow Rate - 3 Bar 44 l/min
