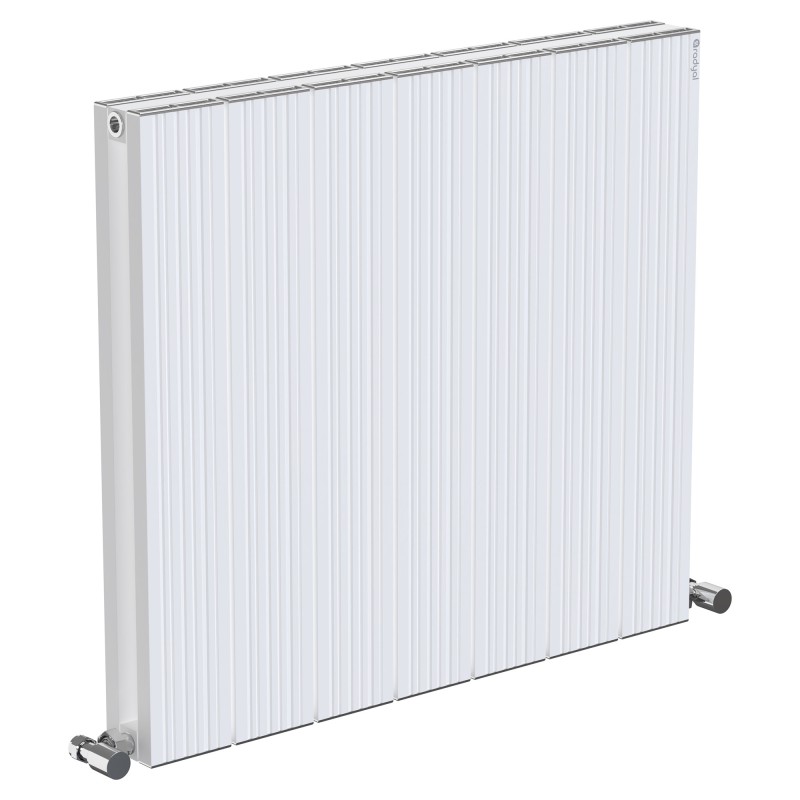

"The Radyal Tower Bold Double aluminium radiator is a sleek, modern design with 90mm wide extruded vertical sections for increased surface area and impressive heat outputs"
665mm(w) x 600mm(h) Horizontal Tower Bold Double (3305 BTUs)
855mm(w) x 600mm(h) Horizontal Tower Bold Double (4249 BTUs)
1045mm(w) x 600mm(h) Horizontal Tower Bold Double (5194 BTUs)
1235mm(w) x 600mm(h) Horizontal Tower Bold Double (6135 BTUs)
1425mm(w) x 600mm(h) Horizontal Tower Bold Double (7080 BTUs)
380mm(w) x 1800mm(h) Vertical Tower Bold Double (4887 BTUs)
570mm(w) x 1800mm(h) Vertical Tower Bold Double (7329 BTUs)
The Tower Bold Radiators are available in a powder coated white, anthracite or black painted finish.
Finish | White |
---|---|
Width | 665mm |
Height | 600mm |
BTU Output | 3305 |
Watts Output | 969 |
Guarantee | 10 Years Euronorm BS EN 442 |
Material | Aluminium |
Projection From The Wall | 100mm |
Socket Width | ½" BSP |
Fixing Kit | Four point wall fixings plus full instructions |
Pipe Centres | 665mm plus valve widths |
Tube Bar Pattern | 7 Vertical Sections |
This is just a guide for reference only, rooms may require more than one radiator. If this applies to you, divide the required output between the number of radiators required. All figures given are for Delta T 50°
